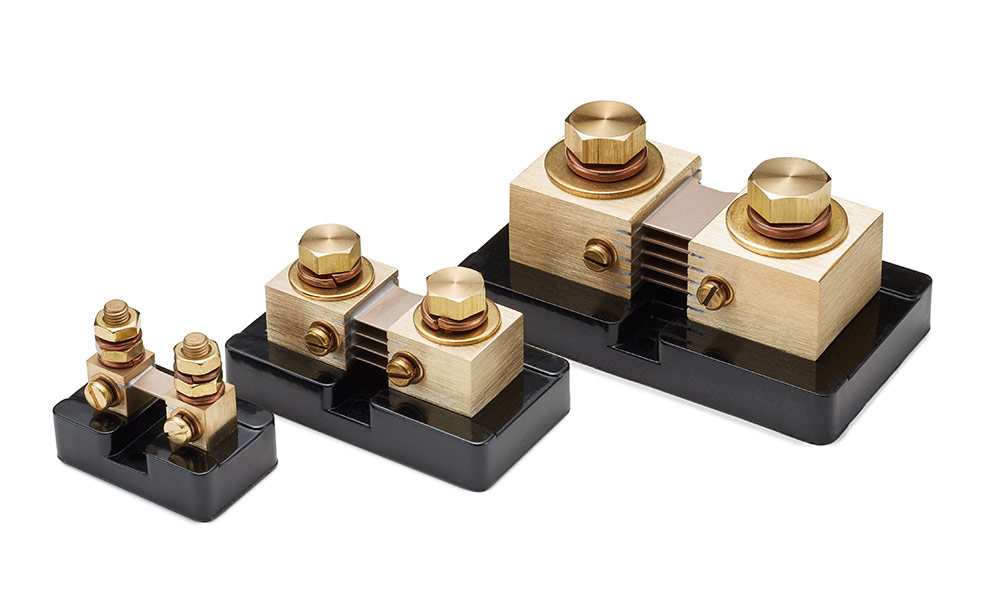

DC Current Shunt

RS Series

Precision Current/DC Current Shunts

pdf
  • Base Mounted Shunt
  • Current Rating 5 to 1200 Amps
  • 50mV, 100mV, or Custom Output
  • Standard Tolerance ±0.25%
  • Manganin Resistive Element
  • Common Applications: Solar Generators, Wind Power, Heavy Industry, Electroplating, Battery Chargers, Mining
TypeRSARSBRSC
Rated Current (A) 5 to 150 170 to 600 800 to 1200
Operating Current (A) 3.33 to 100 113 to 400 533 to 800

Resistance ( mΩ )

50mV Output

0.3333 to 10.00 0.0833 to 0.2941 0.0417 to 0.0625

Resistance Range ( mΩ )

100mV Output

0.6667 to 20.00 0.1667 to 0.5882 0.0833 to 0.1250
Voltage Tolerance ±0.25% Standard
±0.1% Available*
Military Spec Built to A-A-55524, Commercial Version of MIL-S-61B
Calibrated on Certified N.I.S.T Equipment

* contact factory

pdf See PDF Datasheet for Full Specifications
