Riedon offers the best lead-time in the industry. Average lead-time is 4-5 weeks for wire wound resistors. 1-2 week premium delivery is also available!

Custom Resistors


Custom Resistive
Solutions

Power

View Details
X Aluminum housed heater with flexible leads. Used as optics package heater in severe-environment security cameras Standard 50W aluminum housed or “chassis mount” resistor with custom flying (flexible) leads

High Temperature Precision

View Details
X High temperature transducer compensation resistors available in low TC and various high-TC versions using Evanohm, Balco, platinum, and nickel wires (see also the Joule description). Available in radial (black) and PC (red) lead configurations.

Custom Shunt

View Details
X Custom designed shunt resistor with manganin resistor element and brass mounting blocks. Special shaped shunt with duel manganin wires, silicone/fiberglass insulating sleeve and specially shaped ring terminals. Application in the welding industry.

Custom Network

View Details
X Special, qualified high-temperature 11-resistor network. Complete quality-controlled aerospace missile application requiring QCI testing on each production lot..

Temp Sensing

View Details
X Special temp-sensing resistor using a threaded brass bobbin with integral mounting screw head and high TC RediSeal wire (3500ppm/°C).

Custom Package

View Details
X Special “banana plug” resistor used to configure a test board by easily adding or removing the resistor.

Metal Element

View Details
X Showing various form shapes for the MSR low-ohm metal element product line.

Joule Rated

View Details
X Special joule–rated part with custom soldered, flexible lead terminations. Joule-rated parts are designed survival under high current or voltage spike applications (lightning strike, motor start-up etc.).

Heater Chip

View Details
X Custom thick film heater chip with special surface mount leads. Applications in the severeenvironment security camera industry to prevent fogging of the camera optics package.

Fuse Resistors

View Details
X Special fusible resistor with tight fusing characteristics, clear plastic housing and complete mil/aero qualification documentation for US missile project.

Four Leads

View Details
X Duel precision resistor package with four leads...

Screw Terminal

View Details
X Precision resistor with screw terminal.

Ceramic Based Resistor

View Details
X 1M to 4M ohm, 5% tolerance, 80mm x 15mm Custom Chip

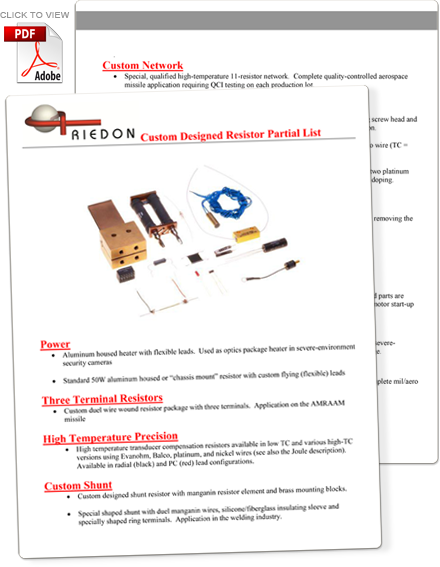

Power

Aluminum housed heater with flexible leads. Used as optics package heater in severe-environment security cameras
Standard 50W aluminum housed or “chassis mount” resistor with custom flying (flexible) leads

Three Terminal Resistors

Custom duel wire wound resistor package with three terminals. Application on the AMRAAM missile

High Temperature Precision

High temperature transducer compensation resistors available in low TC and various high-TC versions using Evanohm, Balco, platinum, and nickel wires (see also the Joule description). Available in radial (black) and PC (red) lead configurations.

Custom Shunt

Custom designed shunt resistor with manganin resistor element and brass mounting blocks.
Special shaped shunt with duel manganin wires, silicone/fiberglass insulating sleeve and specially shaped ring terminals. Application in the welding industry.

Custom Network

Special, qualified high-temperature 11-resistor network. Complete quality-controlled aerospace missile application requiring QCI testing on each production lot.

Temp Sensing

Special temp-sensing resistor using a threaded brass bobbin with integral mounting screw head and high TC RediSeal wire (3500ppm/°C). Used in commercial oven (pizza) application.
Custom temp-sensing resistor with brass heat-transmitting shell. Wound with Balco wire (TC = 4800ppm/°C)
Custom designed wire wound gas flow sensor. The sensor is a precision tube with two platinum wire windings (TC = 3800ppm/°C). Applications in semiconductor production gas doping.

Custom Package

Special “banana plug” resistor used to configure a test board by easily adding or removing the resistor

Metal Element

Showing various form shapes for the MSR low-ohm metal element product line.

Joule Rated

Special joule–rated part with custom soldered, flexible lead terminations. Joule-rated parts are designed survival under high current or voltage spike applications (lightning strike, motor start-up etc.).

Heater Chip

Custom thick film heater chip with special surface mount leads. Applications in the severeenvironment security camera industry to prevent fogging of the camera optics package.

Fuse Resistors

Special fusible resistor with tight fusing characteristics, clear plastic housing and complete mil/aero qualification documentation for US missile project.

Four Leads

Duel precision resistor package with four leads.

Resistor
Sourcing

Know the Riedon Part?

Download our complete Catalogue here

Let us do the search!
Email Us and let us find a solution to your requirement

Need a quick Quote? Contact us

Need some samples? Contact us




Request Samples

Featured
Products


Riedon Inc.
Compact Shunts Available!


medical_resistors

Click Here
To Learn More!

Riedon
News

  • Resistor solutions within inverter applications
  • Discover the new RSW series of compact shunts
  • Bourns Model PWR4412 Series
  • Shunt FAQ - term origins and definitions
  • High Current Fuse Holders

Riedon
Brochure





Download Our Brochure

White Paper
Download





Download Our White Paper

Riedon
Guide to Resistors

[email protected]



Custom electronic devices often require precise custom resistive technology. Riedon has maintained its reputation for delivering the best in custom made resistive technology for decades. Their deliverability is timely, completed with optimal design and manufacturing. The need for custom resistors has been more widespread since technological devices are working to make every aspect of our lives easier every day.

Small medical devices designed to pump insulin, start the heart or help someone breath need to be designed with the best technological solutions in mind. The same is true for aeronautical engineering tools that are designed for safety in travel in the commercial airline industry. The list of technological solutions requiring cutting edge solutions is seemingly endless.

Riedon has been a trusted name in the resistor industry for decades and continues to create custom solutions for all resistor types. This includes solutions for wirewound resistors as well as thick and thin film or foil resistors. Specialized devices require specialty experience and design. Many factors need to be considered when the need for custom resistors arises.

First, be sure to ask questions about how the custom resistors are manufactured and tested for optimal quality and performance. Additionally, experience matters, companies who have successfully designed custom resistors for specialized industries will have the knowledge and skill needed to get the job done right the first time.

All parameters need to be considered when designing and implementing new technology. The experts with Riedon understand how to create what you need with all parameters considered and prime deadlines taken into consideration. For more information about the custom resistors that Riedon has developed in the past contact their team of experts today. Not all technology is created equal, make sure your device is in the hands of custom resistor design experts with Riedon and you won’t be disappointed.
