Current Sensing Shunt

RCS Series

Current Sensing Shunt

77 Amp - 173 Amp

pdf

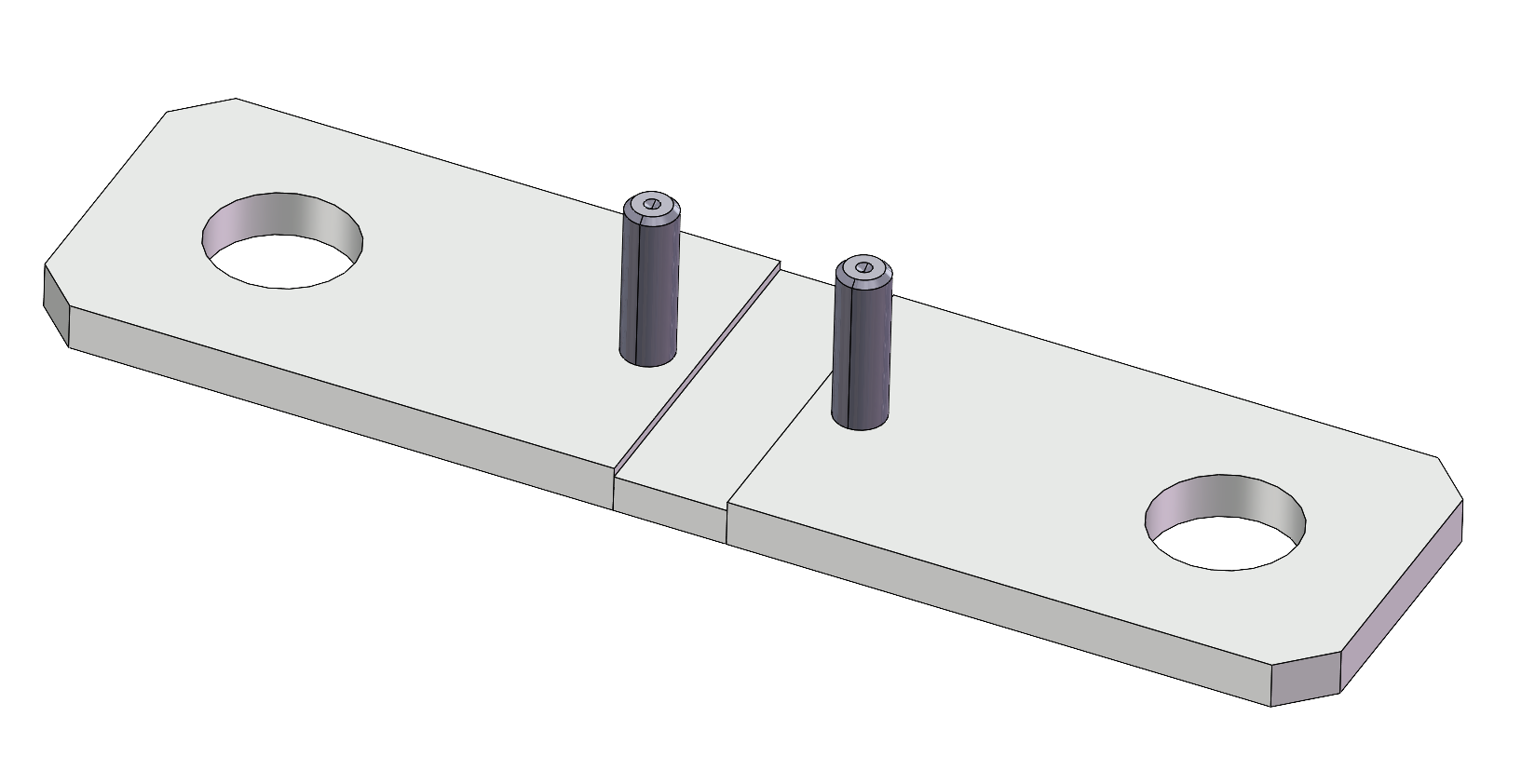

resistor
  • 3W Power
  • 77 Amp to 173 Amp
  • 0.1 mOhm to 0.5 mOhm
  • Simple 4-port Kelvin Structure
  • Lead Free Construction
  • Non-inductive Metal Element
  • Common Applications:
    • Switch Gear
    • Welding
    • Power Supply
TypeSpecifications
Resistance Value 0.1 to 0.5 mOhm
Tolerance ±1% or ±5%
TCR 0 to 100 ppm ( view data sheet)
Power 3W
Max Power 100W / 0.1s
Storage Temp. -55°C to 125°C
Operating Temp. -55°C to 175°C
Material

Contact: Ni plated Cu

Element: Black epoxy paint over Manganin

 pdf  See PDF Datasheet for Full Specifications
